Autel Robotics Smart Controller, V3 - DOES NOT WORK WITH V1 OR V2 DRONE

by Autel
Sold out
$1,299.00
    • The built-in display is twice as bright as the next leading competitor and 4 times brighter than a conventional cell phone screen.
    • The 7.9-inch QHD display offers anti-glare coatings and provides clear visibility under direct sunlight.
    • 4.5h Ultra-Long Battery Life: The 5800mAh Lithium-ion battery within lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to meet your demands in aerial operation for those long days out in the field.
    • 128GB Internal Memory: Ample internal storage has space for media and flight logs without the need for external storage.
    • -20~40℃ Working Temperature: Bigger heatsinks allow the Smart Controller to operate with a wider temperature range, giving you a more stable, reliable operation in extreme environments without overheating or freezing.
    • The Smart Controller runs on a customized Android system and supports additional flexibility for third-party system workflow by allowing users to download additional third-party apps and can allow users to create their own exclusive OS.
    • 8-core Processor: The Qualcomm 8-core processor can smoothly play 4K/60fps H.264 and 4K/60fps H.265 video.

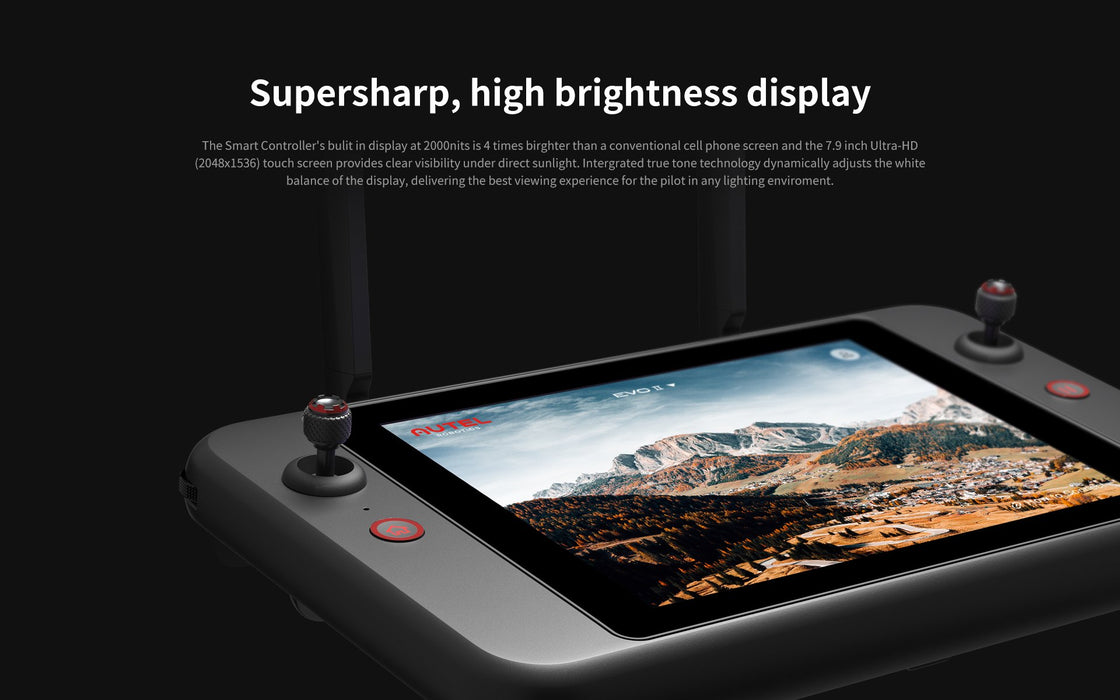

    • Smart Controller V3's built-in display at 2000nit is 4 times brighter than a conventional cell phone screen and the 7.9-inch Ultra-HD (2048x1536) touch screen provides clear visibility under direct sunlight.
    • Integrated true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for the pilot in any lighting environment.
    • Smart Controller V3 supports 2.4GHz/5.8GHz/900MHz tri-band communication and can automatically frequency hop for maximum anti-interference capability.
    • 2.7K 30p video resolution is available within 1km and 1080p HD image comes standard between its 1km-15km transmission range.

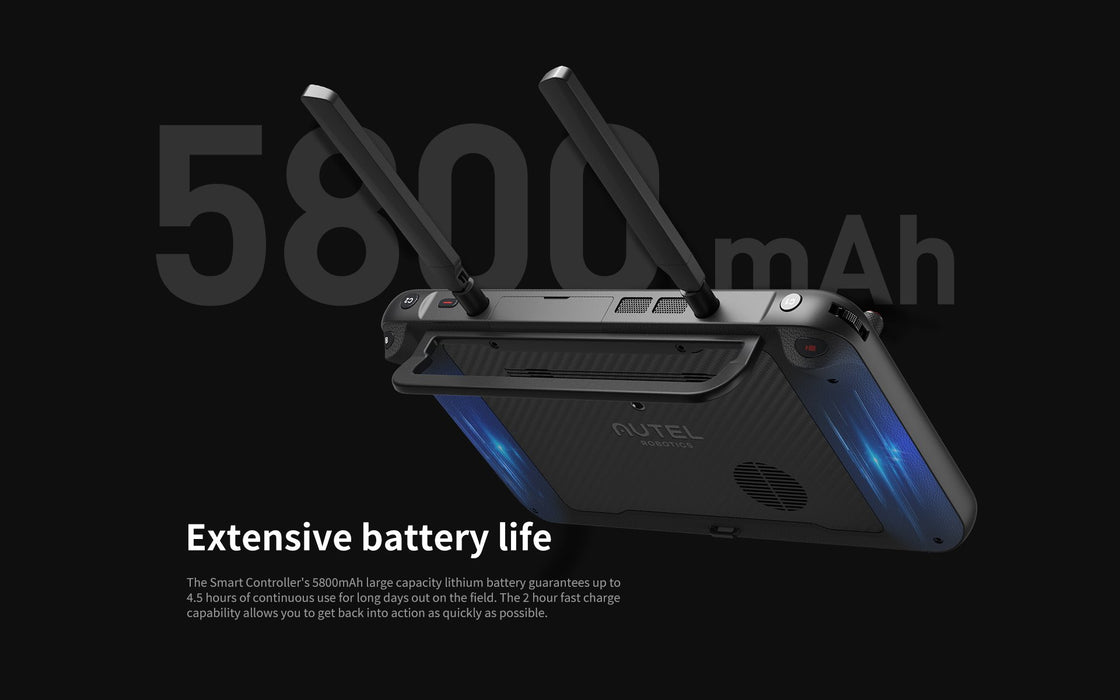

    • The 5800mAh lithium battery guarantees 4.5 hours of continuous work and can be fully charged in 2 hours.

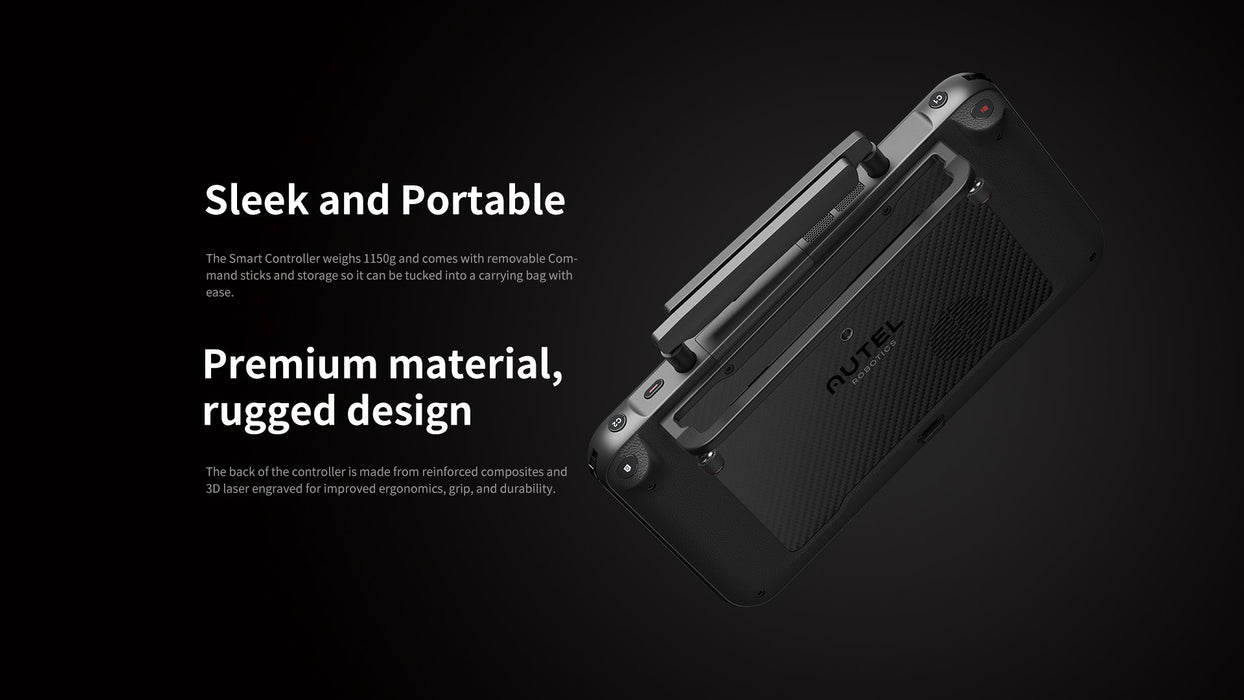

    • The back of the controller is made from reinforced composites and is 3D laser engraved for improved ergonomics, grip, and durability.
    • The Smart Controller weighs 1150g and comes with removable Command sticks and storage so it can be tucked into a carrying bag with ease.

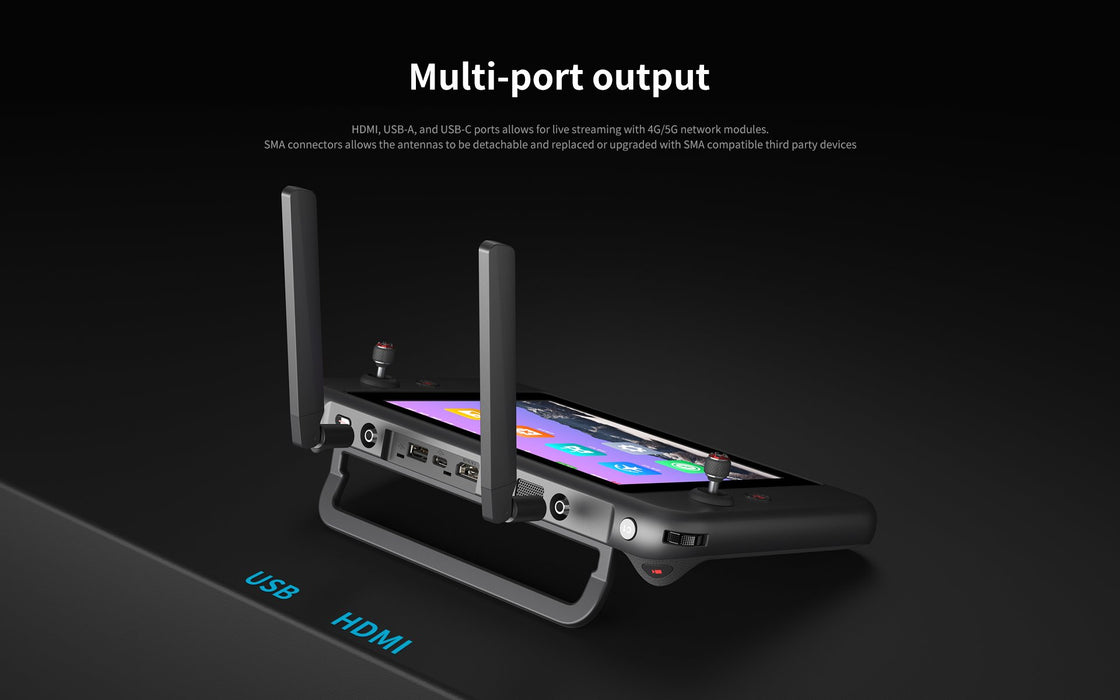

    • HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allow the antennas to be detachable and replaced or upgraded with SMA-compatible third-party devices.


    Model Number: EVO2-AC-SMRTCTLR-V3

    Whats In The Box?

    • 7.9 Inch Smart Remote Controller
    • Remote Controller Protective Case
    • A/C adapter
    • USB Type-C Cable
    • Chest Strap
    • Spare joysticks
    • Documentation (Quick Start Guide)
  •  2000nit super-bright screen

    Autel Smart Controller's built-in display is twice as bright as the next leading competitor and 4 screens. The 7.9-inch QHD display offers anti-glare coatings and provides easy visibility under direct sunlight.

    -20°C~40°Cworking temperature

    Bigger heatsinks allow the Smart Controller to operate with a wider temperature range- giving extreme environments without overheating or freezing.

    4.5h Ultra-long battery life

    The 5800mAh Lithium-ion battery lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to meet your demands in aerial operation for those long days out in the field.

    Customized Android System

    The Smart Controller runs on a customized Android system and supports additional third flexibility for third-party system work flow by allowing users to download additional third party apps and can allow users to create their own exclusive operating system.

    128GB Internal memory

    Ample internal storage allows more than enough space for media and flight logs without the need for external storage. Autel Smart Controller offers additional SD Card support for up to 1TB- more than enough for all your video and photo needs.

    8-core processor

    Samsung Exynos 88958-core processor endows the smart controller to play 4K /60fps H.264 and H.265 videos smoothly.

  • Image Transmission Max Signal Transmission Distance, (No interference, No obstacles)
    FCC:13 km (8 miles)
    CE/ MIC/ SRRC:7 km (4.3 miles)
    Wi-Fi Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support2x2 MIMO Wi-Fi
    Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz; 5.650 - 5.755GHz; 5.725-5.850 GHz; 9o2 -928MHz
    Battery Name: Intelligent Li-ion battery
    Capacity: 580OmAh
    Voltage: 11.55V
    Battery Type: Li-ion
    Battery Energy: 67 Wh
    Charging time: 120 min
    Operating Hours ~3h(Max Brightness)
    ~4.5h (50% Brightness)
    Internal Storage 128GB
    Video Output port HDMI Port
    USB-A Voltage/current 5V/2A
    Operating Environment Temp -4°F to 104 °F
    Storage temperature -4°F to 140°F (within a month)
    -4°F to 113°F (between one to three months)
    -4°F to 73°F (one year)
    Charging Environment Temp 32°F to 104°F
    *Supported Aircrafts EVO II Series, EVOII RTK Series, EVO II Enterprise
    Satellite Positioning Module GPS +GLONASS +Galileo
    Dimensions 303×190×87mm (with antenna folded)
    303×273×87mm (with antenna unfolded)
    Weight 2.53 lbs (without protection case)
    2.75 lbs (with protection case)
  • 1 Year Limited
